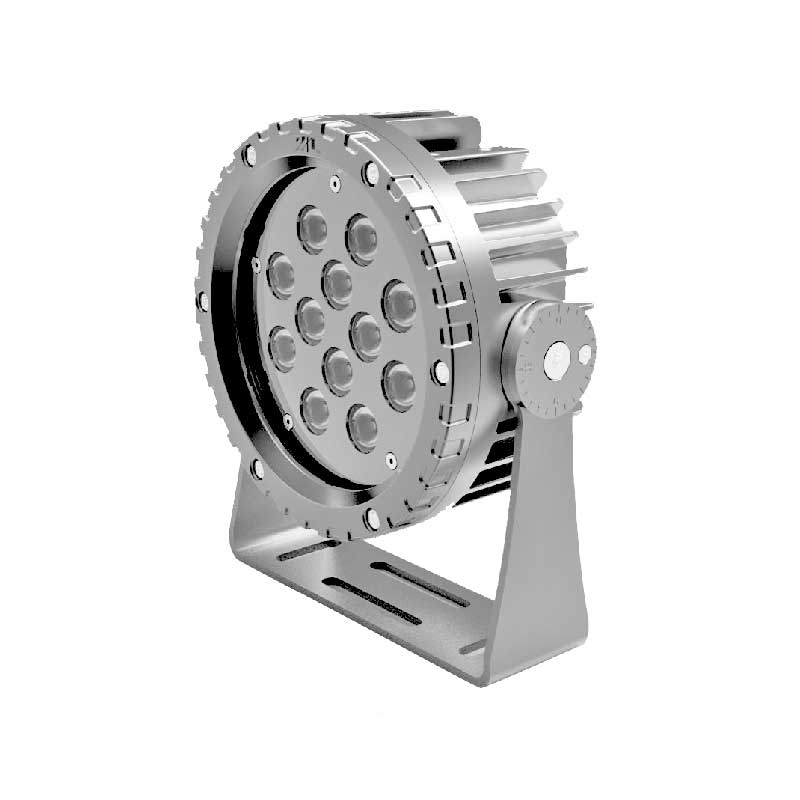

Flood Light RLL-T160C

PRODUCT FEATURE:
◎.Made of aluminum with modern design
◎.Patent structure design, waterproof treatment
◎.Low thermal resistance paths design for heat dissipation
◎.Professional optical design with high light-extraction efficiency and uniformity of illumination
◎.Low heating power supply design with high energy efficiency high power factor (PF) value
◎.Outdoor lightening protection

Description

Model	Housing Material	Light Source	Power	Operating Voltage	Drive Current	Color Temperature
RLL-T160C-12M	Die-cast Aluminum	12 × 1W	12W	AC 220V	340mA	Monochrome
RLL-T160C-15M	Die-cast Aluminum	15 × 1W	15W	DC 24V	340mA	Monochrome
RLL-T160C-18M	Die-cast Aluminum	18 × 1W	18W	DC 24V	340mA	Monochrome
RLL-T160C-24M	Die-cast Aluminum	12 × 2W	24W	DC 24V	680mA	Monochrome
RLL-T160C-30M	Die-cast Aluminum	15 × 2W	30W	DC 24V	680mA	Monochrome
RLL-T160C-36M	Die-cast Aluminum	18 × 2W	36W	DC 24V	680mA	Monochrome
RLL-T160C-12R	Die-cast Aluminum	12 × 1W	12W	DC 24V	3 × 340mA	RGB
RLL-T160C-15R	Die-cast Aluminum	15 × 1W	15W	DC 24V	3 × 340mA	RGB
RLL-T160C-18R	Die-cast Aluminum	18 × 1W	18W	DC 24V	3 × 340mA	RGB
RLL-T160C-24R	Die-cast Aluminum	12 × 2W	24W	DC 24V	3 × 680mA	RGB
RLL-T160C-30R	Die-cast Aluminum	15 × 2W	30W	DC 24V	3 × 680mA	RGB
RLL-T160C-36R	Die-cast Aluminum	18 × 2W	36W	DC 24V	3 × 680mA	RGB

FUNCTION PARAMETER:
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: 8°、15°、30°、45°、60°，more available options
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP rating: IP67
Life: 50,000h
