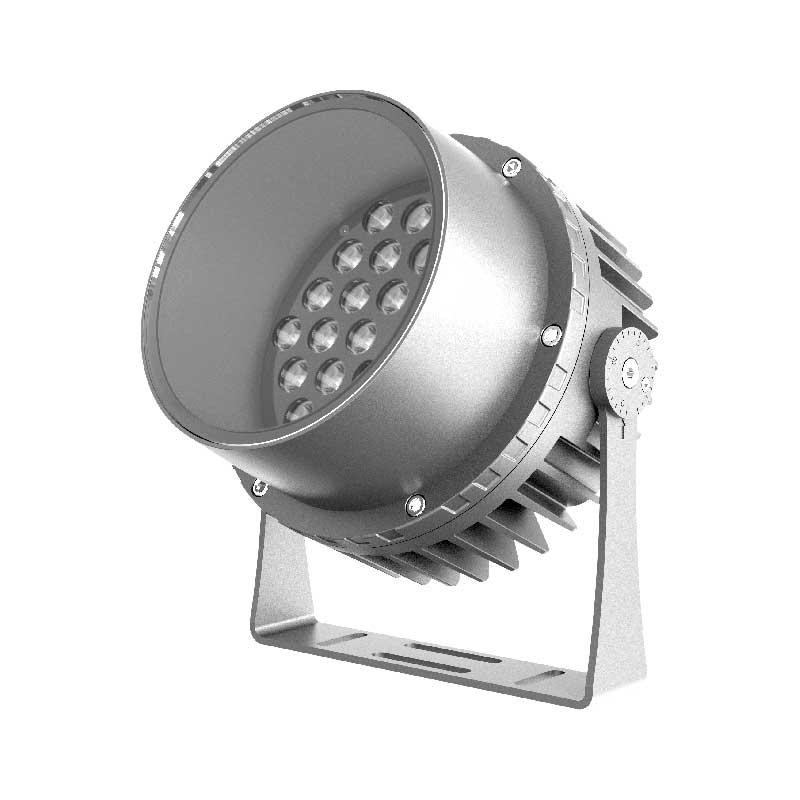

Flood Light RLL-T160BC
Flood Light RLL-T160BC - Image 2

Flood Light RLL-T160BC

PRODUCT FEATURE:
◎.Made of aluminum with modern design
◎.Deep anti-glare design
◎.Professional anti-glare grille function
◎.Patent structure design, waterproof treatment
◎.Low thermal resistance paths design for heat dissipation
◎ .Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
◎.Low heating power supply design with high energy efficiency and high power factor (PF) value
◎.Outdoor lightening protection

Category:

Description

RLL-T160BC Series Specifications – Standard Beam Angle

Model Housing Material Light Source Power Operating Voltage Drive Current Color Temperature
RLL-T160BC-12M Die-cast Aluminum 12 × 1W 12W AC 220V 340mA Monochrome
RLL-T160BC-15M Die-cast Aluminum 15 × 1W 15W AC 220V 340mA Monochrome
RLL-T160BC-18M Die-cast Aluminum 18 × 1W 18W AC 220V 340mA Monochrome
RLL-T160BC-24M Die-cast Aluminum 12 × 2W 24W AC 220V 680mA Monochrome
RLL-T160BC-30M Die-cast Aluminum 15 × 2W 30W AC 220V 680mA Monochrome
RLL-T160BC-36M Die-cast Aluminum 18 × 2W 36W AC 220V 680mA Monochrome
RLL-T160BC-12R Die-cast Aluminum 12 × 1W 12W DC 24V 3 × 340mA RGB
RLL-T160BC-15R Die-cast Aluminum 15 × 1W 15W DC 24V 3 × 340mA RGB
RLL-T160BC-18R Die-cast Aluminum 18 × 1W 18W DC 24V 3 × 340mA RGB
RLL-T160BC-24R Die-cast Aluminum 12 × 2W 24W DC 24V 3 × 680mA RGB
RLL-T160BC-30R Die-cast Aluminum 15 × 2W 30W DC 24V 3 × 680mA RGB
RLL-T160BC-36R Die-cast Aluminum 18 × 2W 36W DC 24V 3 × 680mA RGB

RLL-T160BC Series Specifications – Ultra-Narrow Beam Angle (3°)

Model Housing Material Light Source Power Operating Voltage Drive Current Color Temperature
RLL-T160BC-18M Die-cast Aluminum 6 × 3W 18W AC 220V 1020mA Monochrome
RLL-T160BC-30M Die-cast Aluminum – 30W AC 220V 1650mA Monochrome
